Unpack the robot
Keep the original packaging for future transportation of the robot. Store the packaging in dry conditions and do not expose to water.
To unpack the robot, follow these steps:
Place the box with the robot so that there is at least three meters of free space at the front or the back of the box.

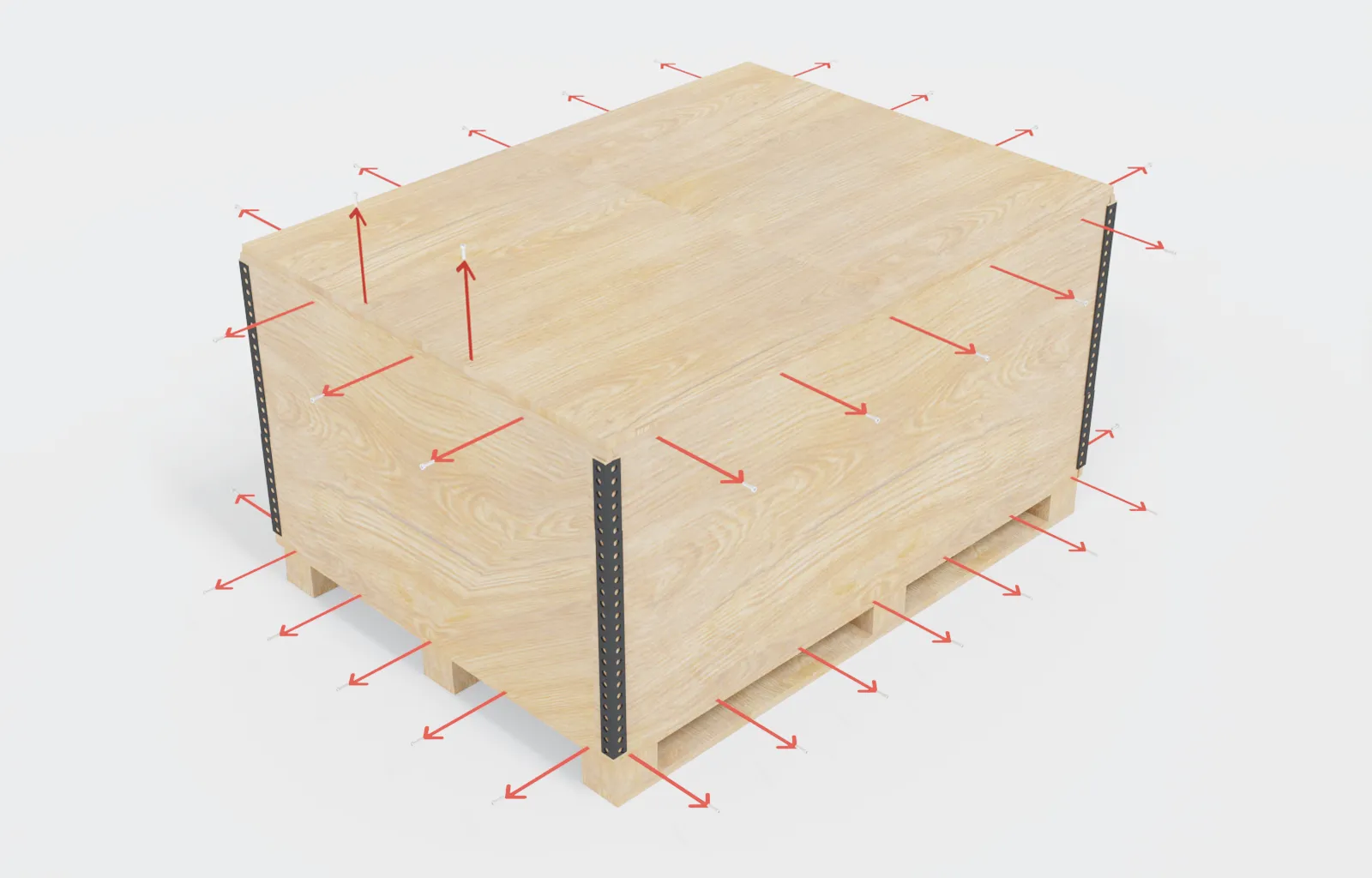

Remove the screws that attach the walls of the box to the box lid and the base of the box. Use a T20 bit.

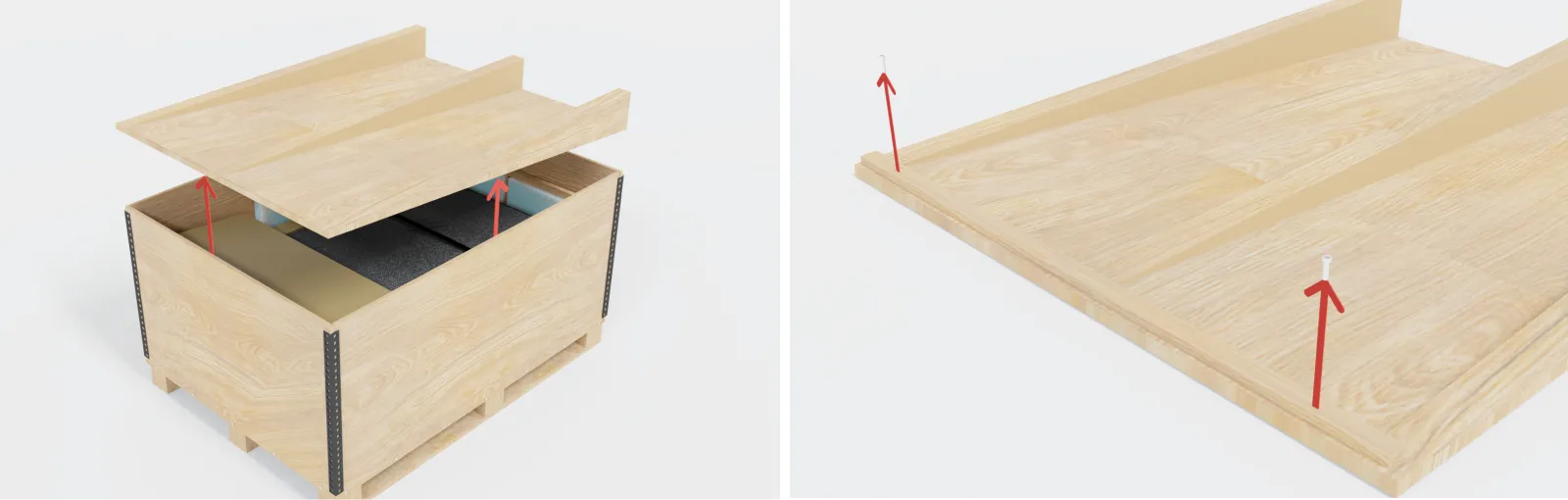

Remove the lid from the box, and remove the wooden lath beneath the lid. Use a T20 bit.

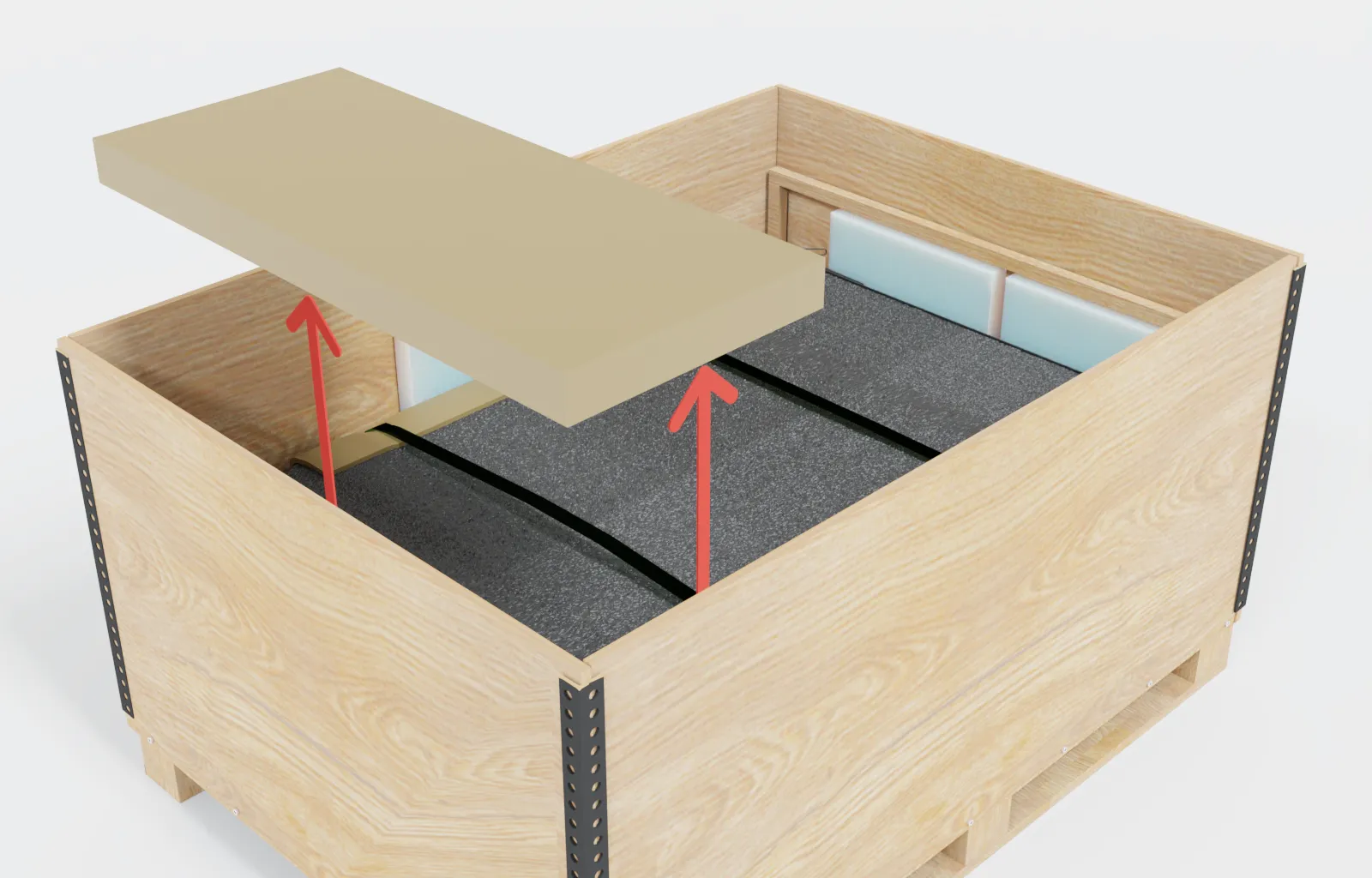

Take the package with the printed documents and accessories out of the box.

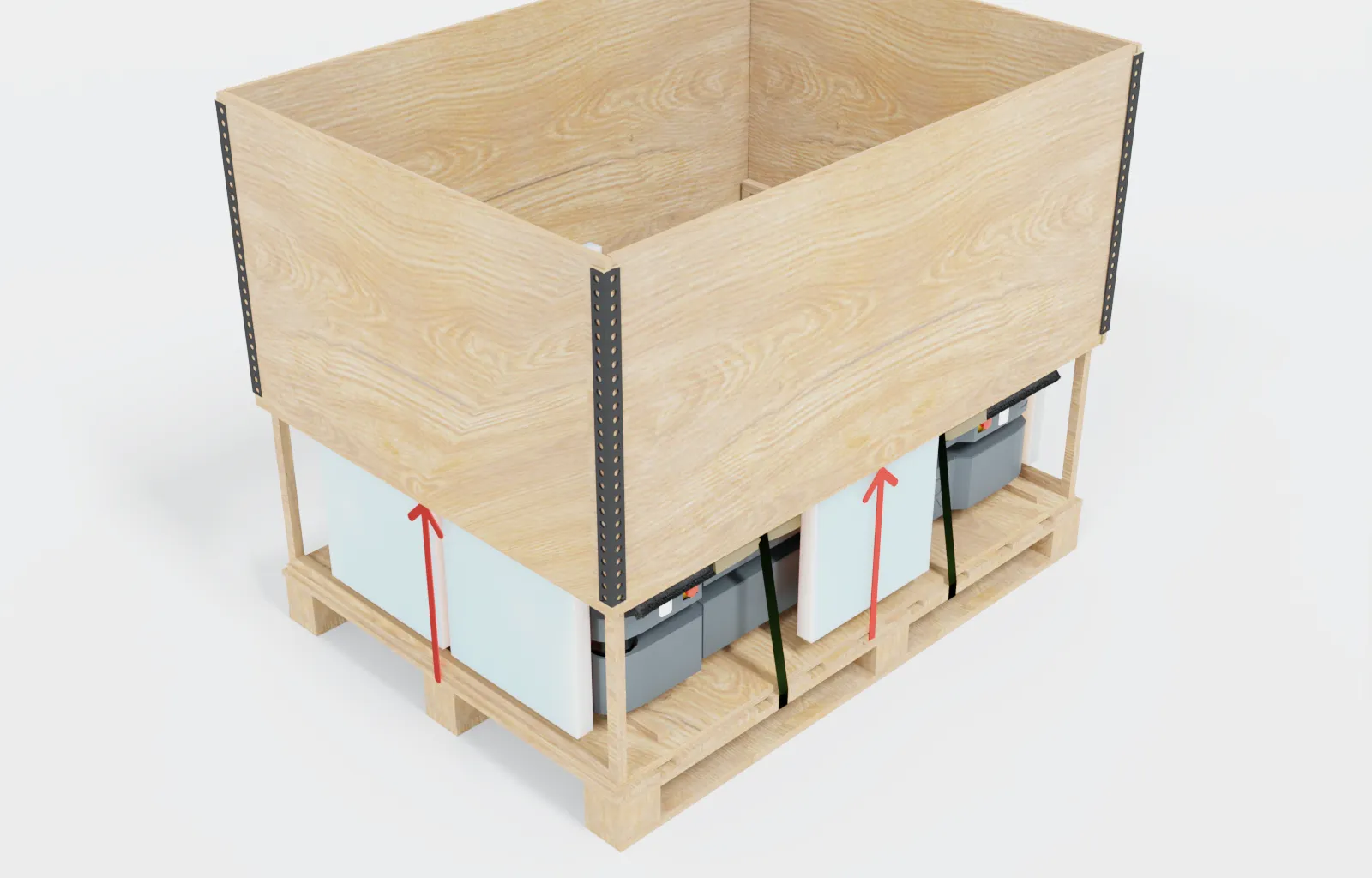

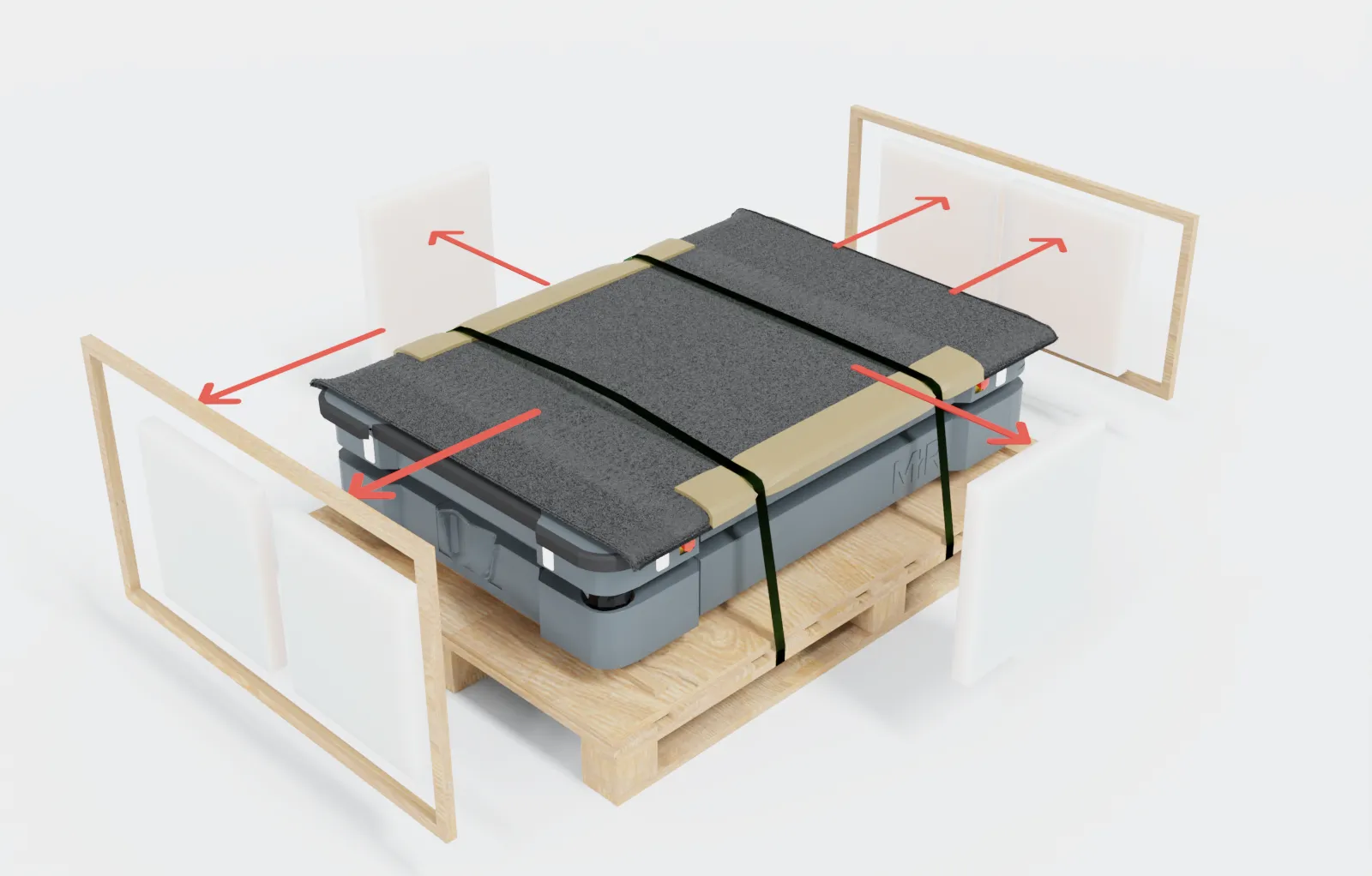

Remove the pallet collars and the protective foam blocks.

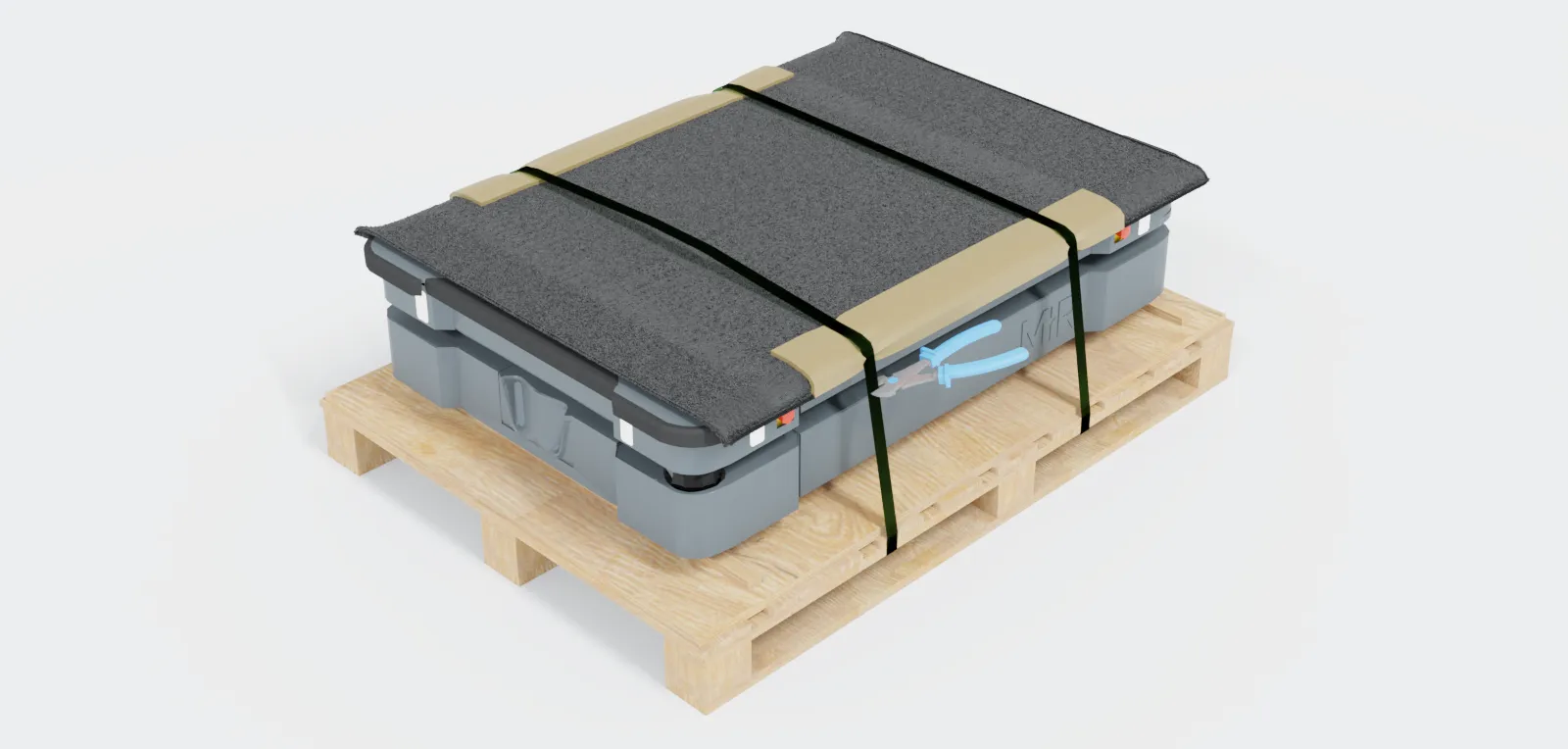

Cut the protective straps.

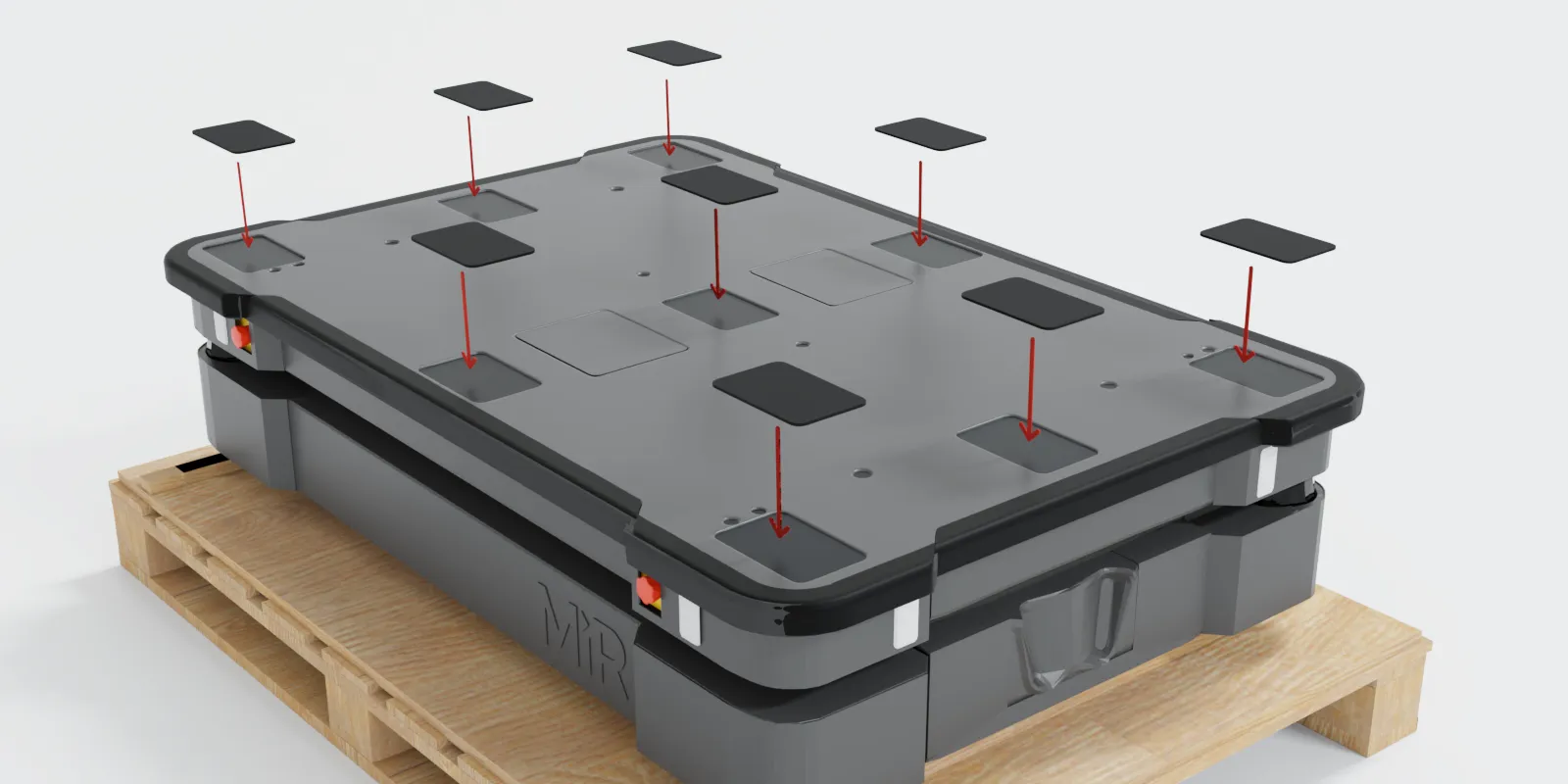

For increased traction, you can add the nine supplied anti-slip pads to the top plate. Remove the protective foil from each pad to expose the adhesive side, and place the pads in the designated recesses in the top plate.

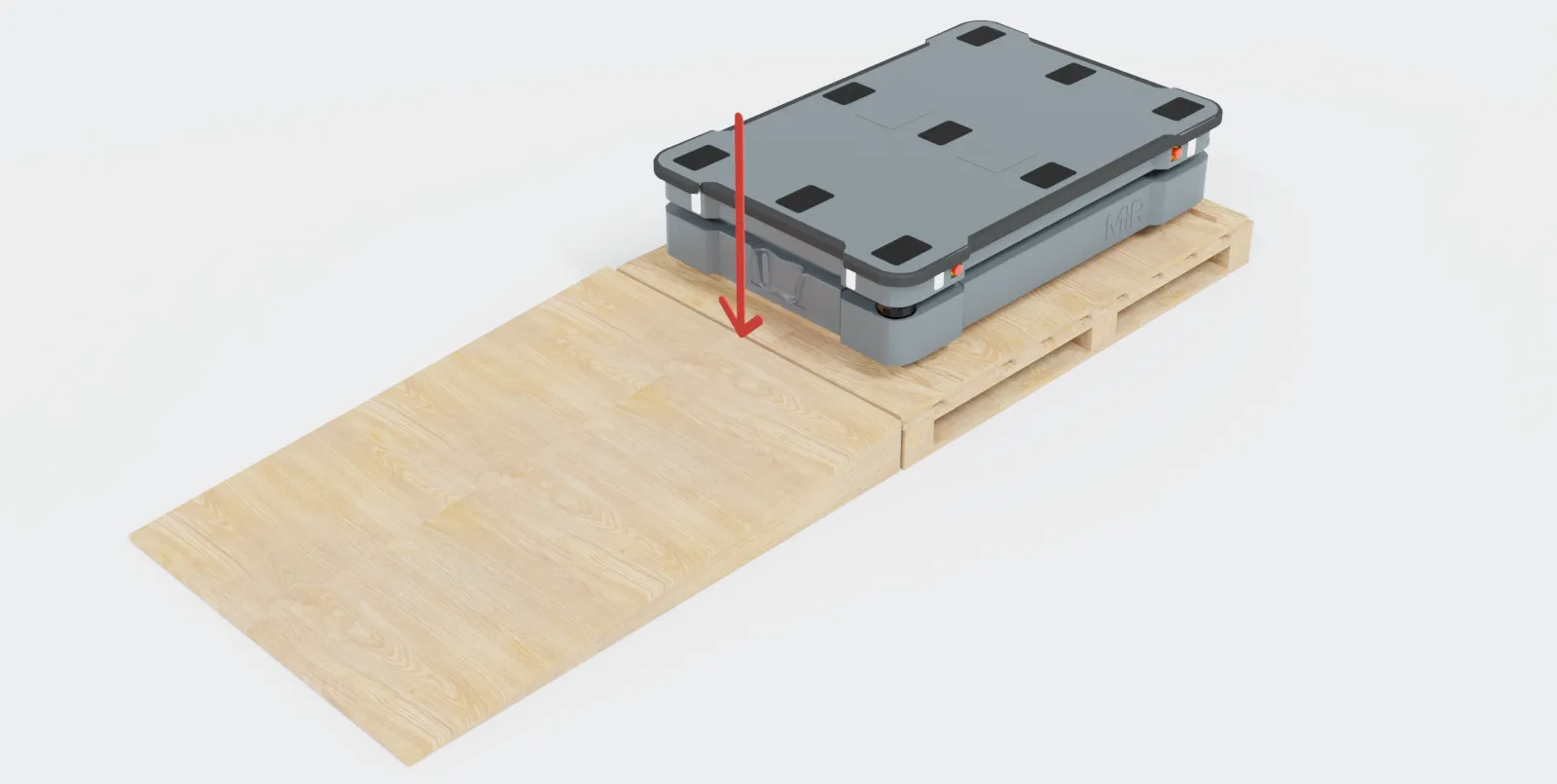

Place the lid of the box so that you can use it as a ramp. Align the lid so that it is flush with the base of the box.

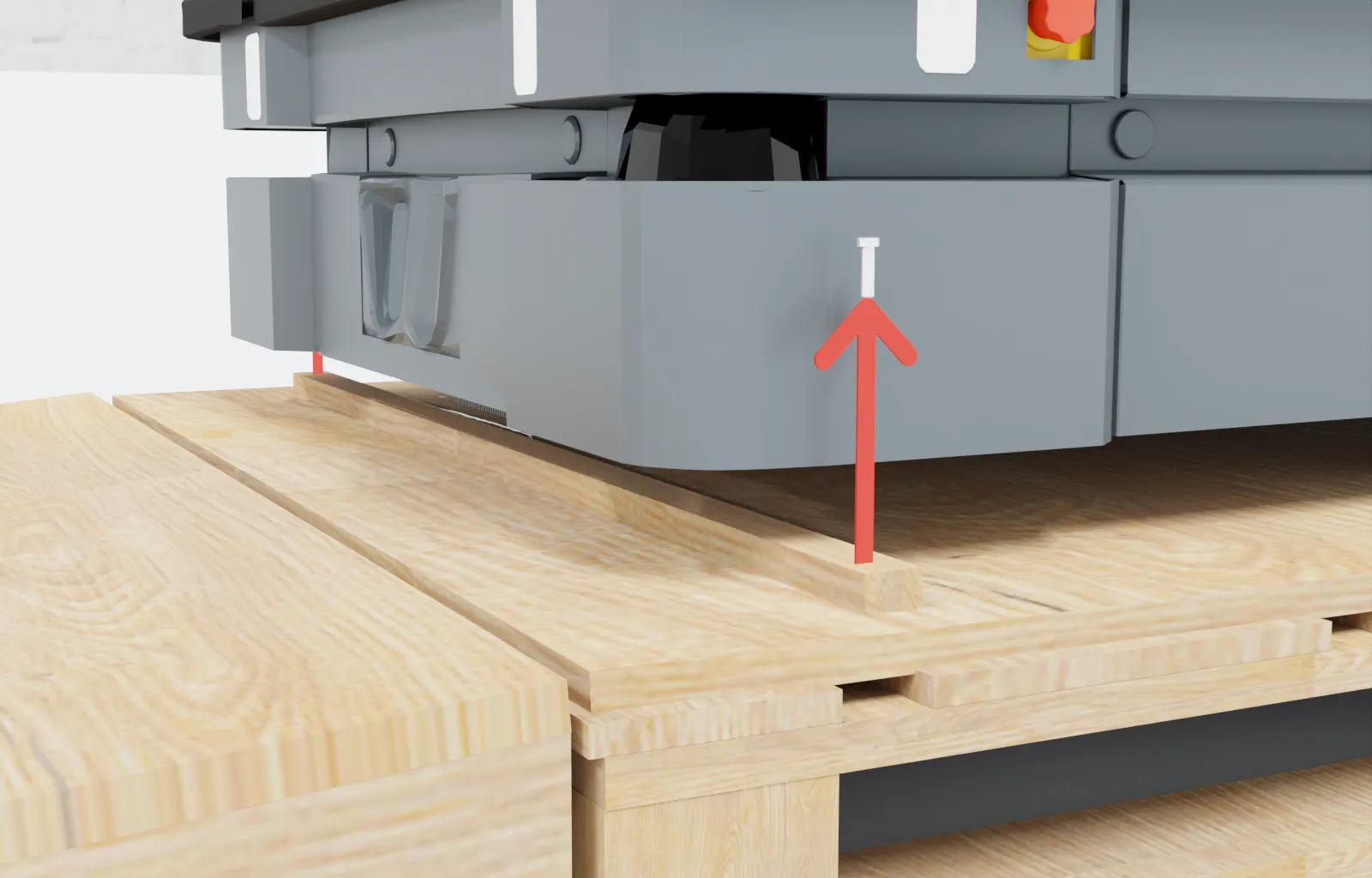

Remove the wheel stop board from the pallet to let the robot drive on the ramp. Use a T20 bit.

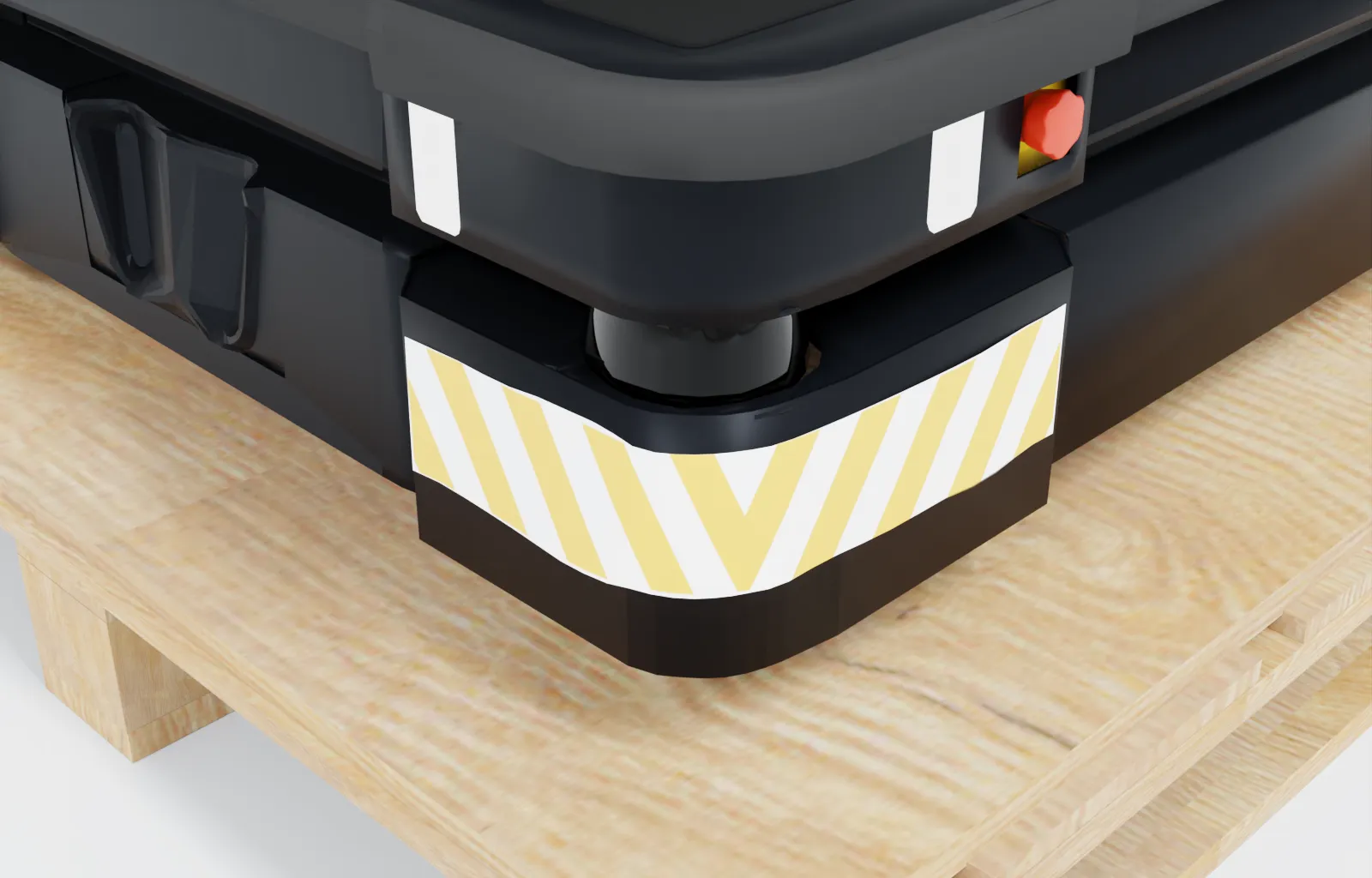

It is optional if you want to apply the visibility stickers to the corners of the robot.
