Payload distribution

WARNING

If the load is not positioned or fastened correctly on the robot, there is a risk of the load falling or the robot overturning. This may cause damage to equipment and injury to personnel.

Ensure that the load is positioned and fastened correctly.

The specifications apply to total payloads of up to 250 kg.

1.2 m/s no incline

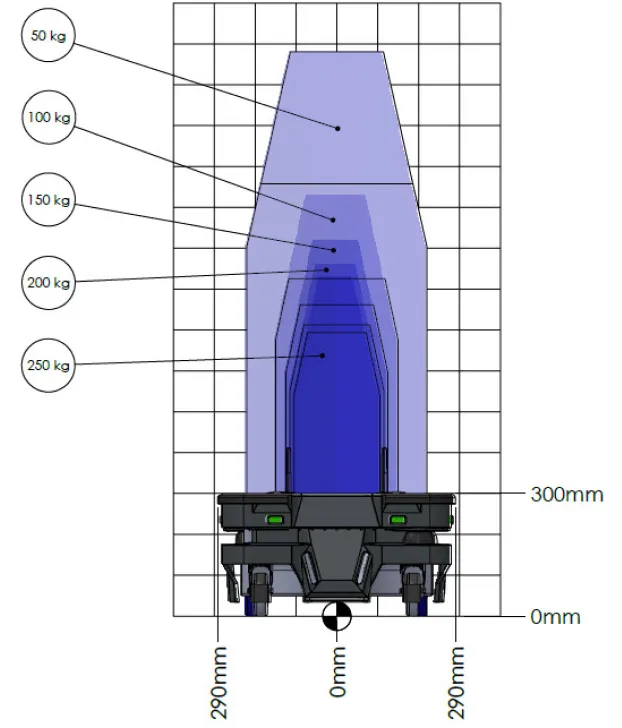

Front

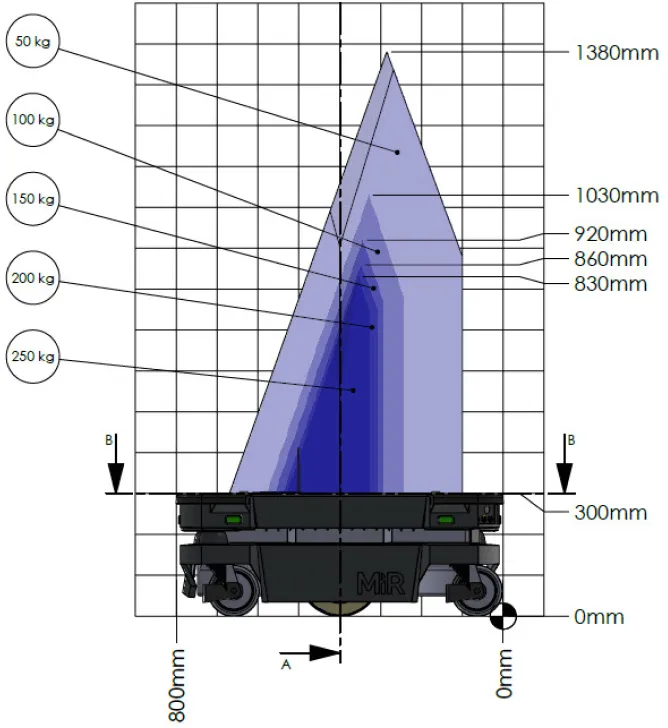

Side

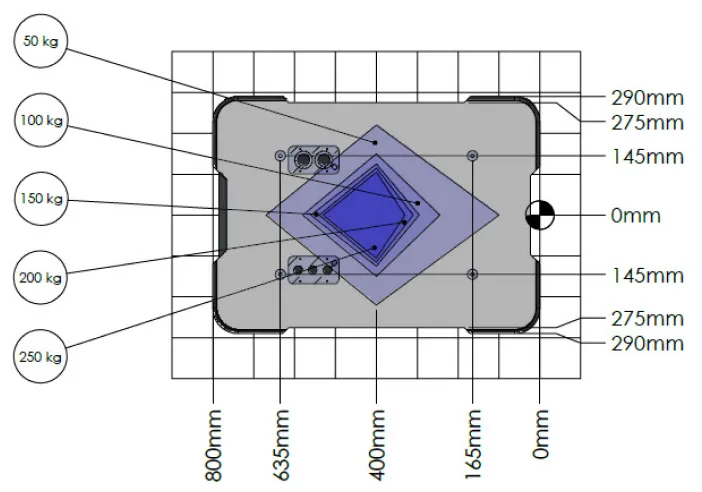

Top view of the allowed CoM for the payload at 1.2 m/s

Top

2.0 m/s no incline

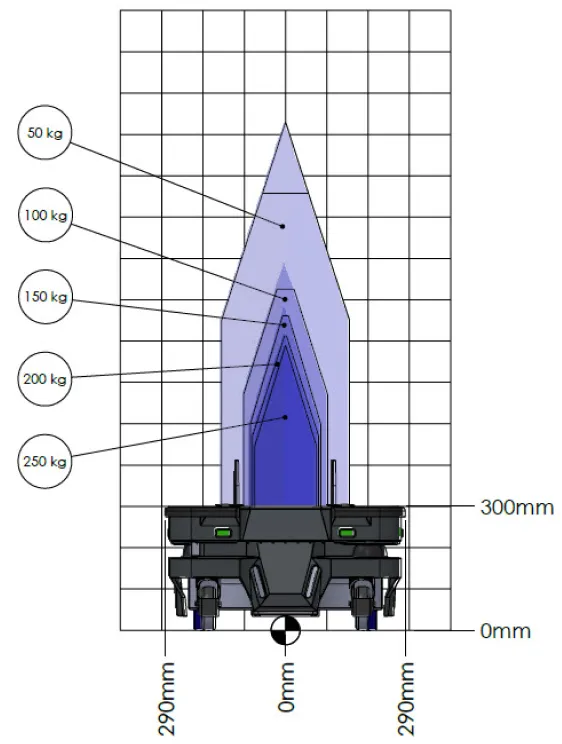

Front

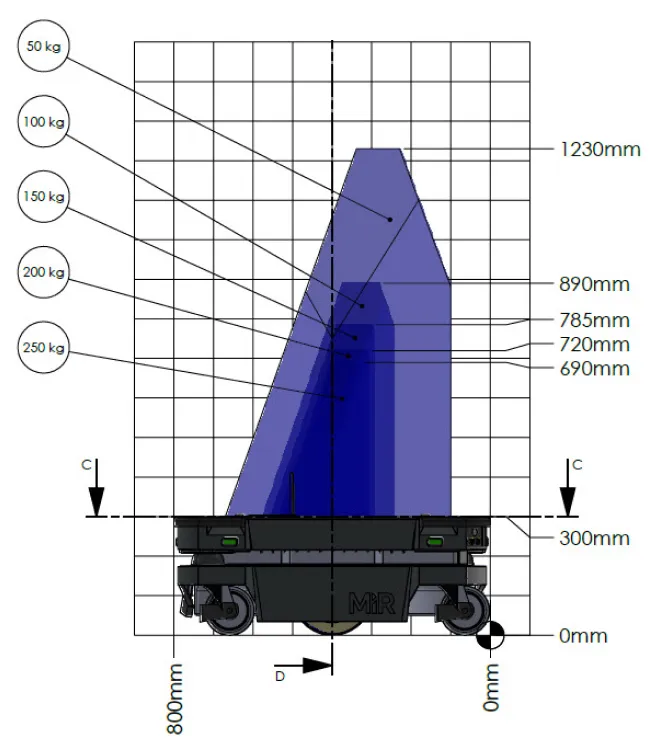

Side

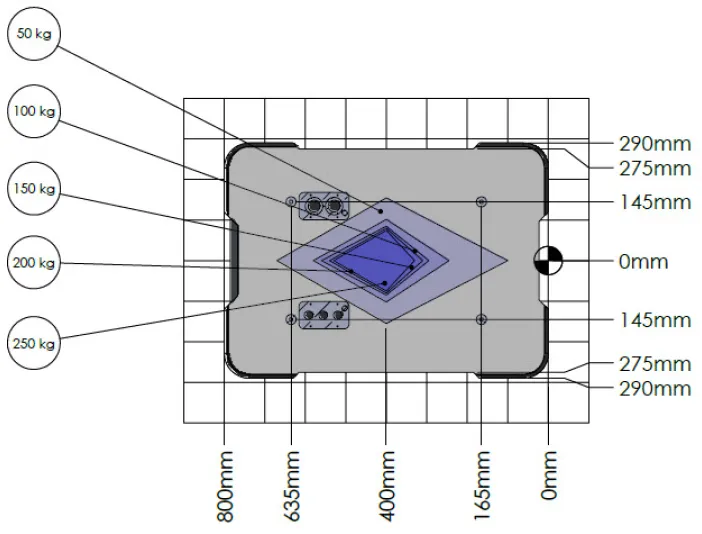

Top view of the allowed CoM for the payload at 2.0 m/s
