Warning labels
The robot is supplied with the following warning labels in the following locations:

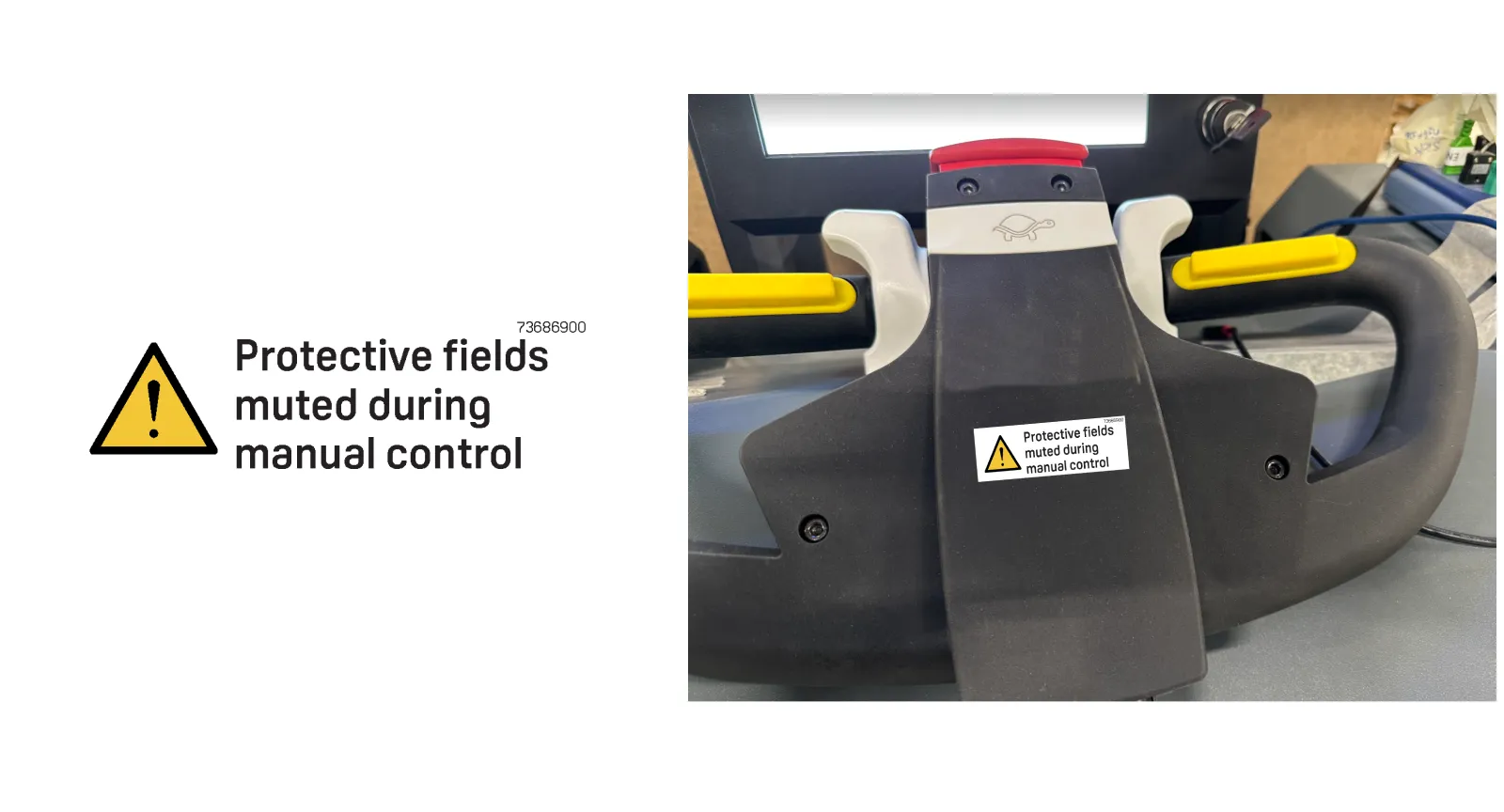

On the tiller head to warn that Protective fields are muted when driving the robot with the tiller.

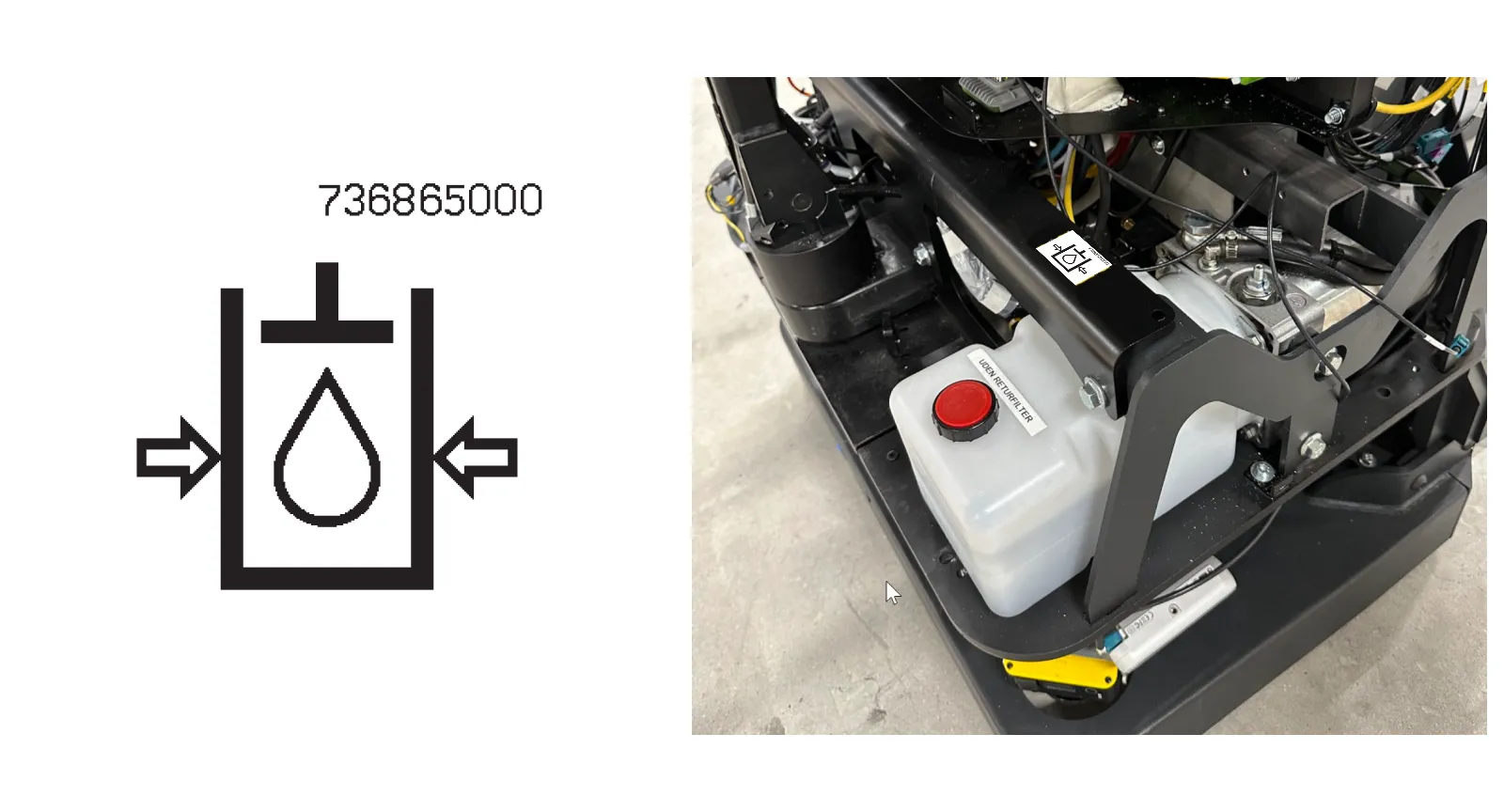

On the frame on top of the hydraulic tank to warn that there is a hydraulic pressure system.

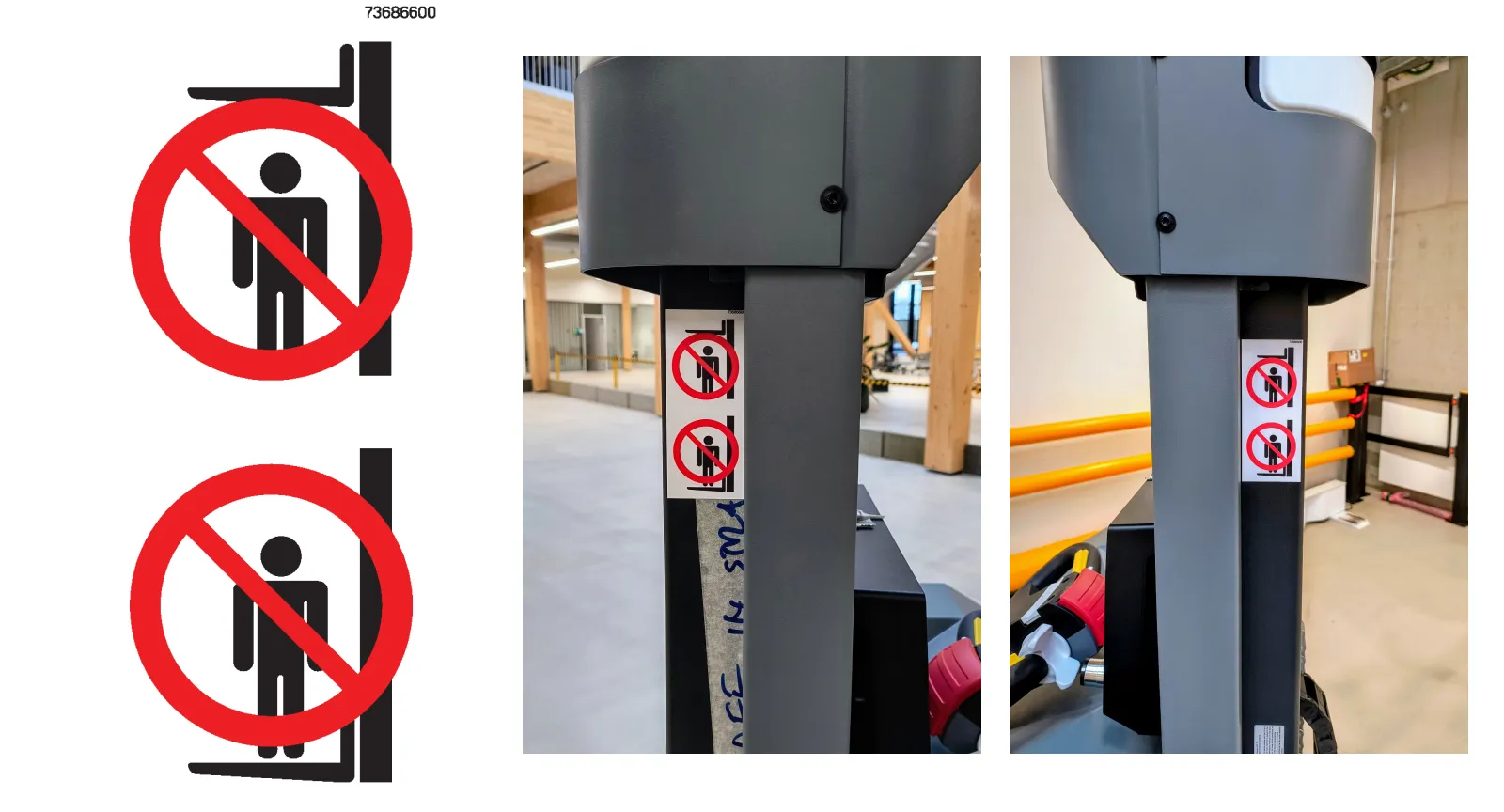

On both sides of the mast to warn not to stand on or under the forks.

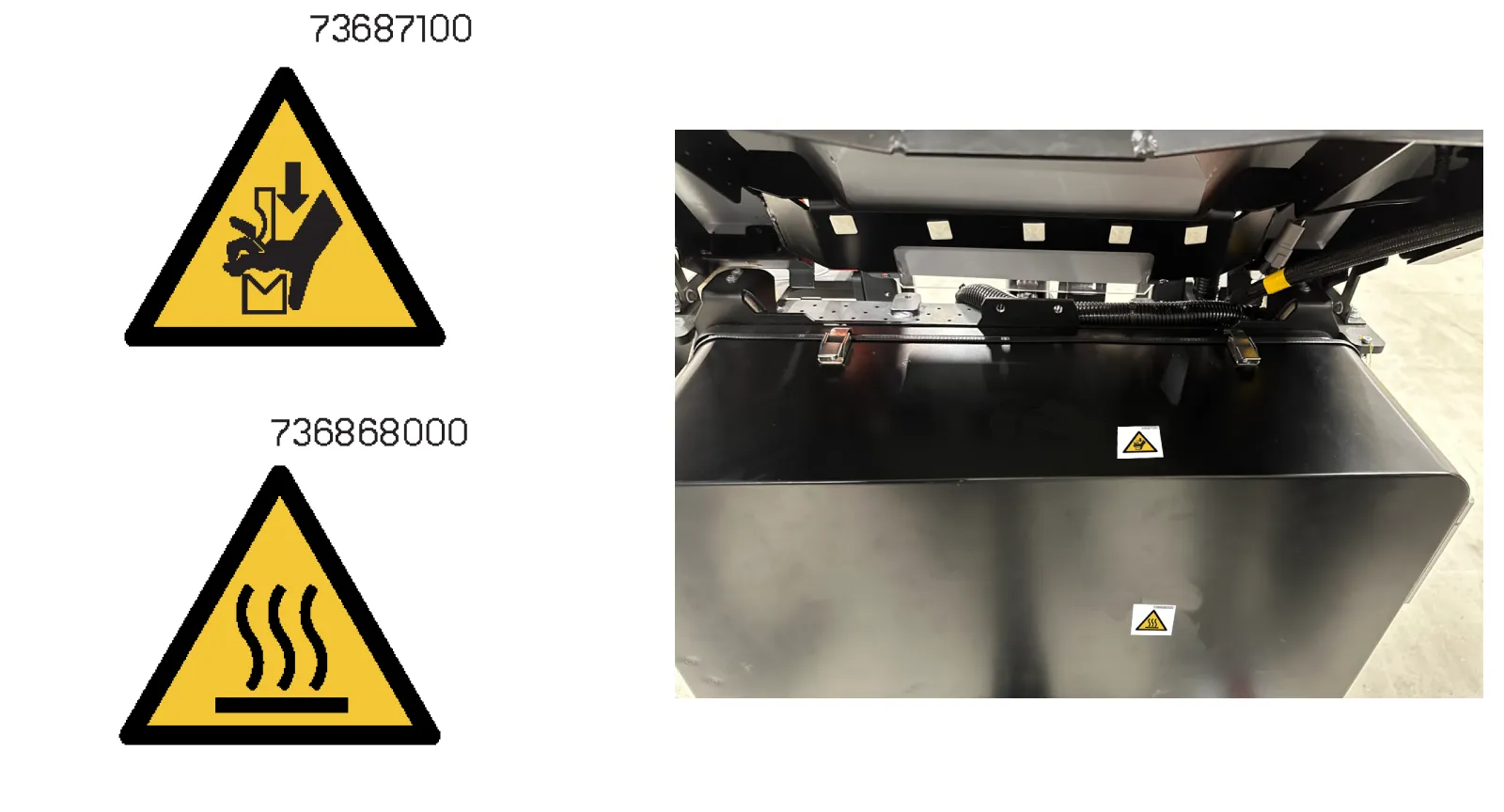

On top of and on the front of the front compartment under the top cover to warn of risk of crushing hand and hot surface area.

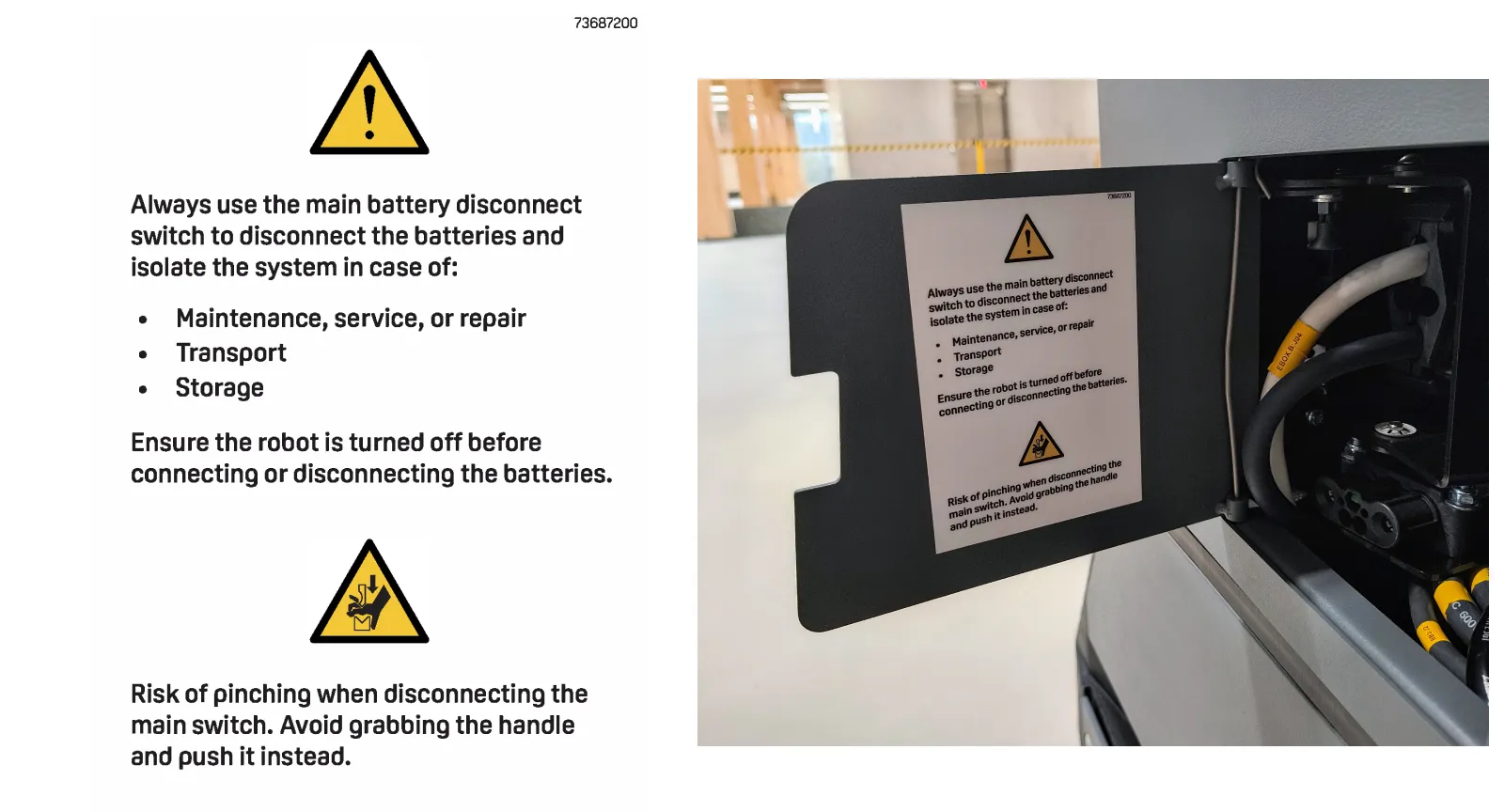

On the inside of the power interface hatch to describe how and when to use the Main battery disconnect switch.

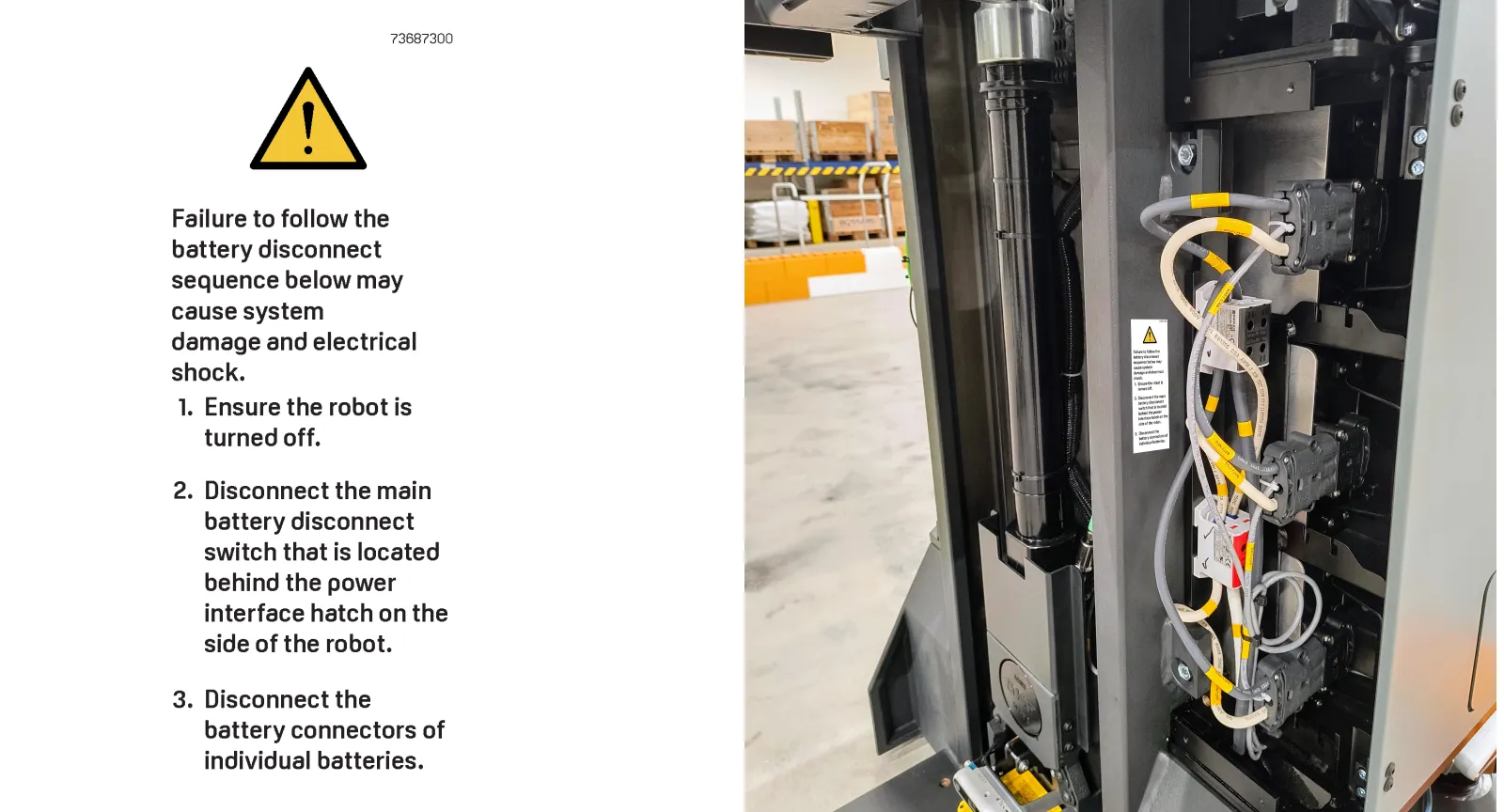

On the mast behind the right rear-cover to warn that failing to follow the correct battery disconnect sequence may cause system damage and electrical shock.
